The UF Ultrafiltration System is a high-efficiency water purification device leveraging advanced membrane technology. It uses porous ultrafiltration membranes (pore size: 0.001-0.1μm) to physically separate impurities like suspended solids, colloids, bacteria, and viruses from water, while retaining beneficial minerals.
Its core advantages include no need for chemical additives, low energy consumption, and stable water production quality. It widely applies to municipal water supply, industrial process water treatment, domestic drinking water purification, and wastewater recycling.
This system effectively enhances water safety and sustainability, serving as a reliable solution for diverse water treatment needs.
High-Quality, Consistent Effluent
With precise pores (0.01-0.1 µm), it effectively removes particles, colloids, and microbes, ensuring stable, high-quality feed water for RO systems.
Chemical-Efficient & Eco-Friendly
Relies on physical separation, drastically reducing chemical usage (e.g., coagulants) and chemical sludge disposal.
Compact & Automated
A modular, space-saving unit that replaces conventional filters. Features fully automatic operation for easy management.
Flexible & Scalable
Adapts to various water sources. Its modular design allows for easy capacity expansion.
Core Technology 1: Anti-pollution and high-efficiency filtration system
Technology: Double stage "pre-filtration+UF membrane"+patented anti-pollution coating. It can directly treating water with turbidity ≤ 500 NTU and COD ≤ 300 mg/L, without pre-treatment.
Effect: Turbidity removal rate ≥ 99.8% COD removal rate 60%-80%;
Vietnamese enterprise case: 30 day free cleaning, efficiency increased by 20%.
Cost: Save 20%-30% on pre-processing investment and reduce downtime losses.
Core Technology 2: Modular Combination Design
Design: Single module 5-200 m ³/h, size 1.2m × 0.8m × 1.5m, can be installed horizontally/vertically, suitable for small spaces.
Efficiency: A single module of 4-6 small units can be completed in 3 days (faster than traditional 7-10 days).
Expansion: simply add modules (compatible with 100%), saving 40% -50% of costs; A certain food factory added modules to save $120,000.
Full-cycle technical support
Pre sale: Free design (3D images can be transferred overseas);
Chinese for sale: English materials+remote guidance from engineers;
After sales: Remote monitoring and warning, proactive maintenance without downtime.

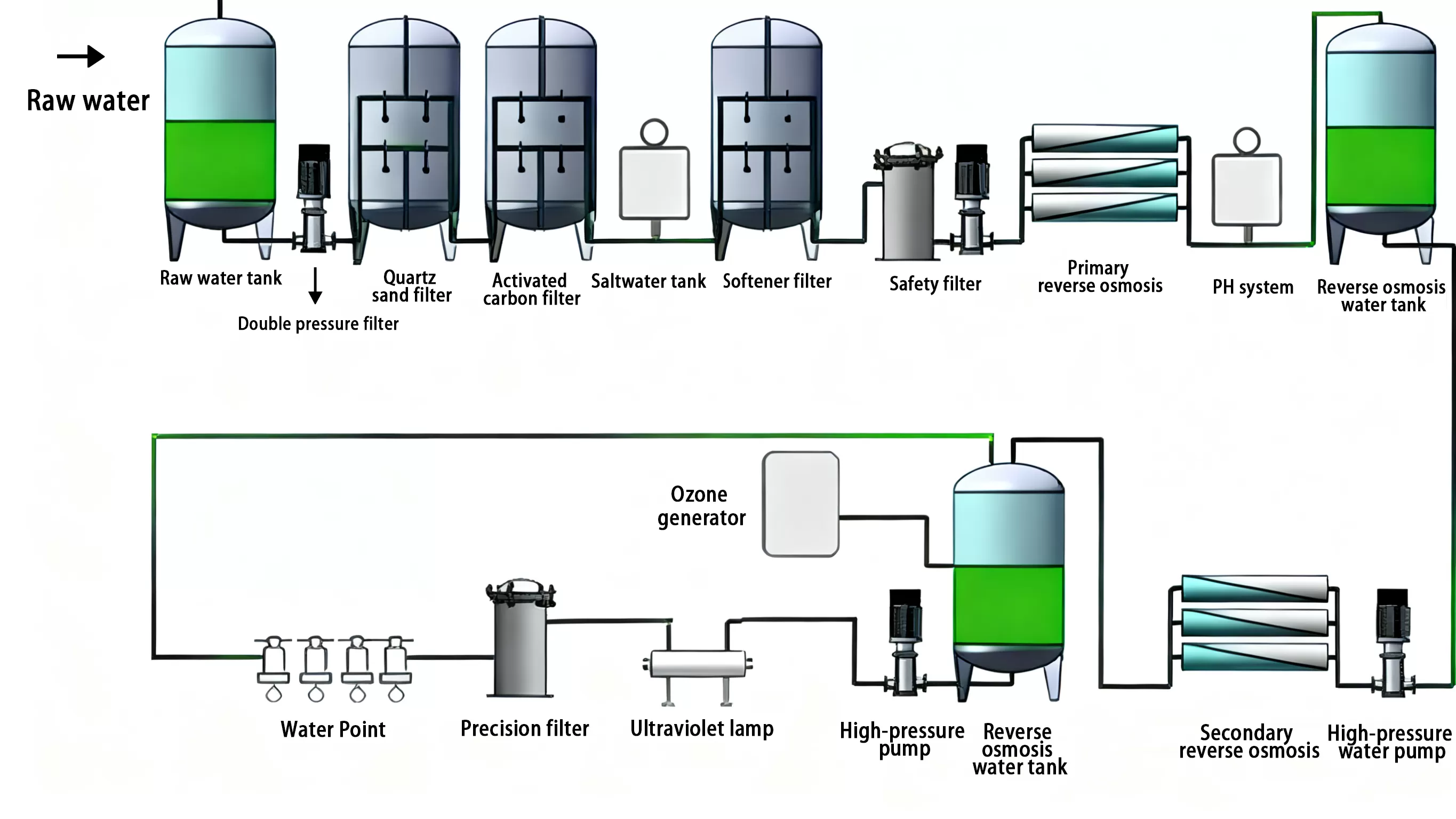

Pre treatment of incoming water: Filter out large-particle impurities and residual chlorine to ensure that the incoming water is compatible with the membrane components;
Ultrafiltration filtration: Water flows through membrane components, intercepting colloids, bacteria, etc., and water molecules and small molecules pass through to purify water;
Membrane cleaning: Regularly rinse the membrane surface to remove contaminants and restore flux;
Water collection: Purified water enters the water tank for subsequent use.
