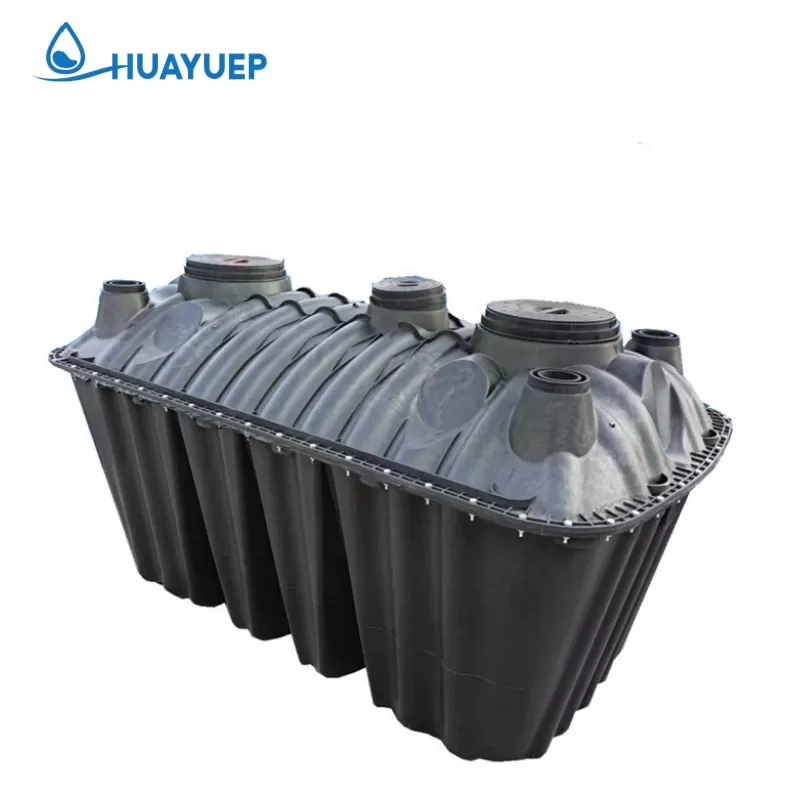

PP septic tanks mostly adopt a three-compartment integrated structure, which treats sewage by relying on anaerobic fermentation and gravity sedimentation principles.
The first compartment functions for primary sedimentation and anaerobic decomposition. After sewage flows in, solid and liquid separate naturally, with scum floating on the top, clear liquid in the middle, and sludge settling at the bottom. Anaerobic bacteria inside decompose organic pollutants and kill most parasite eggs and harmful bacteria.
The second compartment is designed for in-depth anaerobic digestion. The moderately treated intermediate sewage flows in through the diversion pipe to continue the anaerobic degradation process, greatly lowering residual suspended solids in the water.
The third compartment serves for further water clarification and temporary storage. It further purifies the water quality; once reaching discharge standards, the water can be directly drained or used for farm irrigation. The bottom sludge needs regular cleaning and maintenance every 1 to 2 years.
Ingredients:
Main material: Polypropylene (PP) plastic pellets
Auxiliary materials:
① Recycled materials (added in proportion)
② Adding antioxidants, light stabilizers, colorants, etc. to enhance lifespan and appearance
Mold：

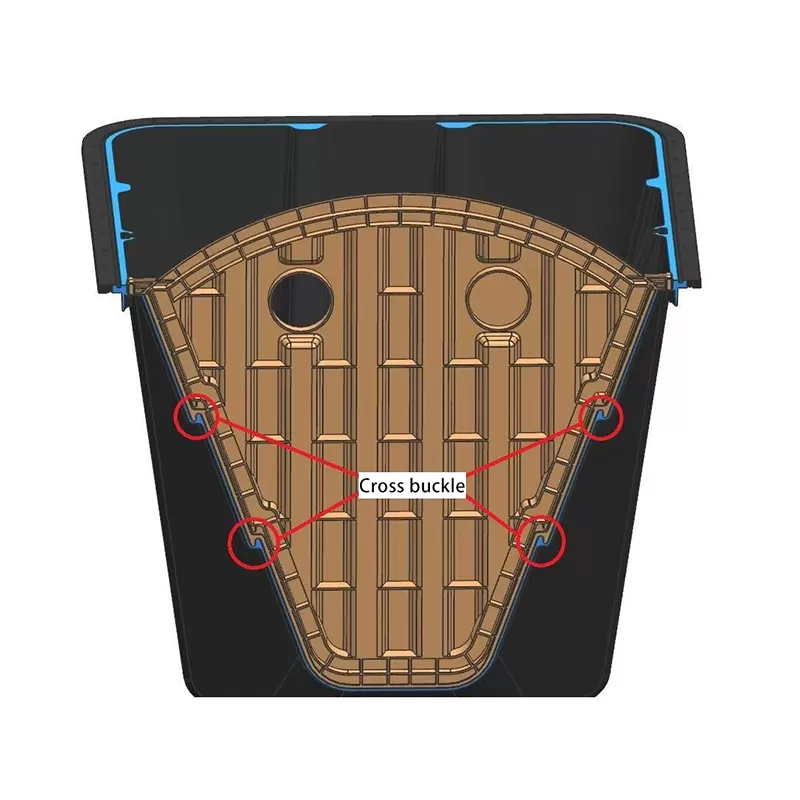

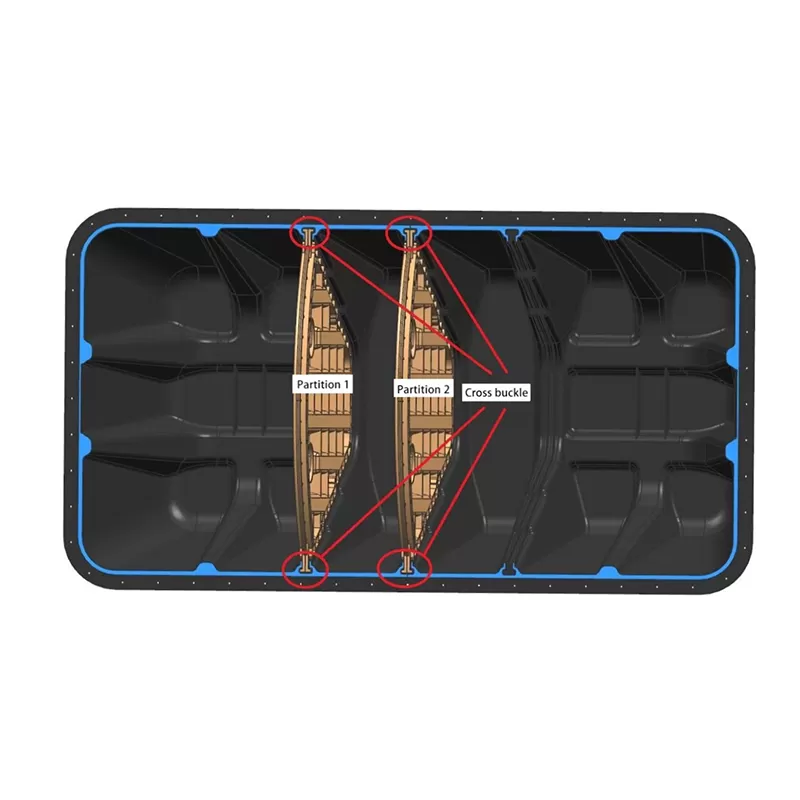

Structure: Split type (upper tank body, lower tank body, partition, top cover), multi cavity mold
Classification surface: sealing groove+sealing ring position, ensuring the sealing performance of the joint
Wall thickness: ≥ 3.0mm (standard 1.0~1.5m ³ specification)
Strengthening ribs: inner and outer rings+longitudinal ribs to enhance ring stiffness and compression resistance
Fecal pipe hole, inlet and outlet, cleaning hole: integrated injection molding
Cooling system: evenly distribute water and shorten cycle time
Injection molding：
Mold clamping: Injection molding machine (800~1600T) locks the mold, pressure 120~160MPa
Plasticization: barrel heating (180-220 ℃), screw rotation to melt PE
Injection: Inject the melt adhesive into the mold cavity at high pressure and high speed (100-140MPa)
Pressure holding: 80-100MPa, 10-30s, compensating for shrinkage
Cooling: Mold temperature 30-50 ℃, water cooling, cycle 40-70s/mold
Mold opening → ejection → retrieval: The robotic arm automatically retrieves the upper and lower pool bodies
Remote residential communities & villa zones: Detached houses and high-end villa compounds located far from urban centers, with no access to municipal sewer networks.
Industrial parks & manufacturing plants: Suburban factories and production workshops, particularly staff living quarters of chemical and textile enterprises.
Construction sites & mining settlements: Temporary or long-term engineering project bases and residential camps in remote wilderness and mining zones.
Tourist resorts & ecological scenic areas: Hotels and holiday villas situated in natural scenic spots, coastal beaches and mountainous regions.
Rural & township upgrading projects: Government-led rural dry toilet renovation schemes, as well as public sanitation infrastructure for towns and less developed regions.
Expressway service zones & gas stations: Roadside service stations and fuel outlets along highways, far away from urban and township areas.
Schools, hospitals & other public buildings: Educational institutions, medical centers and other public facilities in rural outlying areas and remote town outskirts.

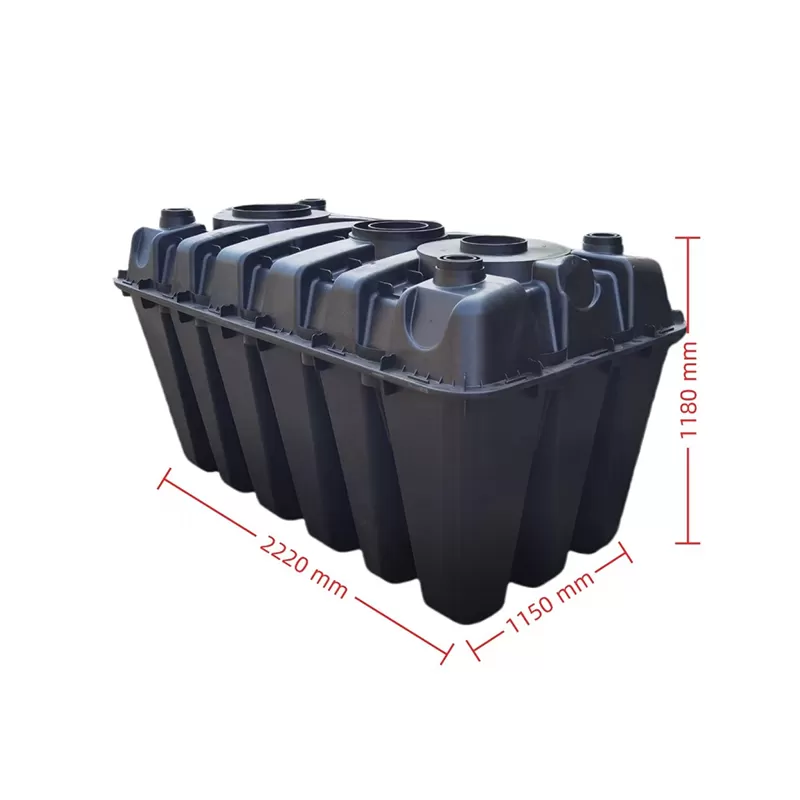

| Model No. | Dimension（mm) | Thickness（mm) | Capacity | Numberofusers | Material |
| HY-1.5 | 203071101100 | 5/7 | 1.5m3 | 8-10 | PP+PE |
| HY-2.0 | 222011501180 | 7 | 2.0m3 | 10-13 | PP+PE |
Local engineering contracting clients in Saudi Arabia undertake government livelihood projects and need to purchase PP septic tanks in bulk that are suitable for the Middle East environment to solve the problem of direct discharge of local sewage polluting groundwater. The core requirements are compliance with Saudi SABER certification, high temperature and sand resistance, durable sealing, customized specifications, low cost and easy installation, and in line with Saudi Arabia's "2030 Vision" environmental protection requirements.
Product: PP integrated three grid septic tank (customized), equipped with anti dust sealing cover and high salt resistant interface
Material: modified polypropylene+UV anti-aging agent, suitable for 40 ℃ -55 ℃ high temperature, acid and alkali corrosion resistance, service life of 50 years
Advantages: One piece molding without leakage, easy weight installation, maintenance free, thickened wall thickness suitable for sand, gravel and soil, sealed and odor proof
Specification: Customized 1.0/2.0/3.0 cubic meters, interface compatible with Middle East general sewage pipelines
Compliance docking:Apply for Saudi SABER certification, provide bilingual technical information and testing reports in English and Arabic, and assist in project reporting.
Production quality inspection: batch production scheduling, whole process quality inspection (water pressure, sealing, anti-aging), to ensure compliance with Middle East engineering standards.
Logistics clearance: Shenzhen Port full container direct to Dammam Port (15 days), standard packaging+complete set of customs clearance documents to avoid customs risks.
After sales service: bilingual installation guidance in English and Arabic, 24-hour technical Q&A, 1-year warranty+long-term accessory supply.
This export adopts the standard sea container transportation scheme:
Packaging method: PE plastic film waterproof wrapping+waterproof oilcloth coverage+corner protection+steel saddle fixation
Transportation method: Sea freight, loaded in standard 20ft/40ft containers
Protective measures: Multi layer protection against moisture, collision, and corrosion to ensure product integrity after long-distance sea transportation
The material meets the ISO 9001 quality standard
CE certification (EU market access)
Complies with the requirements of EN 12566-1 international standard
Passed SGS/BV third-party factory audit
Delivered over 800 units, covering 12 rural areas and 2 refugee camps, achieving sewage purification standards, eliminating groundwater pollution, adapting to the Middle East environment for trouble free operation, recognized by local governments and residents, and assisting customers in completing project acceptance.
Lightweight structure: Its weight is merely one-third that of conventional concrete septic tanks, effectively cutting down logistics and on-site installation expenses.
Superior anti-corrosion capability: Premium PP raw materials can well withstand chemical erosion from sewage wastewater and complex underground soil conditions.
High sealing reliability: Adopting integral injection molding craftsmanship, it completely avoids seepage and leakage, effectively safeguarding underground water sources from contamination.

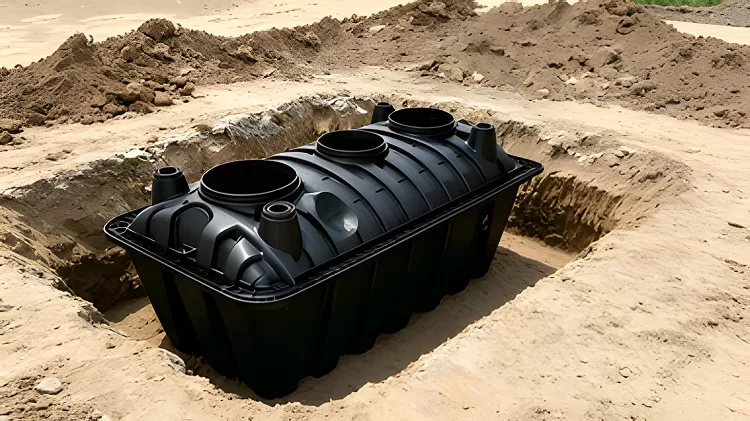

Fast and easy installation: No large heavy machinery is required; on-site assembly can be finished quickly for immediate operation.
Eco-friendly and low-carbon: The material is recyclable, featuring lower carbon footprint across production, usage and scrapping stages.
As global market demand for distributed sewage treatment solutions keeps rising, PP septic tanks have emerged as an optimal option for rural sanitary upgrading and off-grid infrastructure construction projects.
Our company dedicates itself to supplying worldwide clients with premium, cost-efficient PP septic tank products as well as tailored one-stop solutions.
Shouldyou have any interest in further product details or business cooperation discussions, we welcome you to get in touch with us at your convenience.
